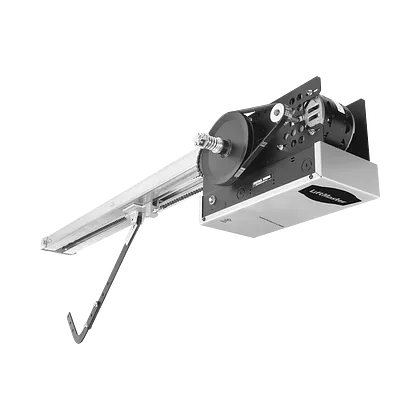

LiftMaster MT Medium Duty Commercial Trolley Operator

Medium-Duty Trolley Operator

Overview

Features

Specs

What's Inside

Installation & Support

Features

Business Safety and Security

DOWNLOAD THE FREE myQ APP

Single Button Control

Single button control provides an additional input for single-button control fuctionality. Required for installation of any external radio receiver.

Auxilliary Limit Switches

Auxiliary limit switches provide additional limit switches with dry form C contacts at the open and closed door positions to control lights, heaters and dock levelers.

Interlock Switch

Interlock switch disables the operator control circuit when door is locked, preventing damage to the door and operator.

Commercial Power

115 Volts

1/2 HP, 115V single-phase motor

NEC Class

24V NEC Class 2 control circuit

Commercial Accessories

Security+®

Built-in 3-Channel Security+ Receiver allows you to learn/program up to 20 LiftMaster 315 MHz remote controls.

Safety Standards

Meets UL 325 Safety Standards.

Commercial Safety Sensors

Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.

Timer to Close

Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the full open position.

Specifications

Advantages

Rated for 15 cycles per hour operation, maximizing the performance of a medium-duty operator.
Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.
Included internal Intellicode® receiver learns up to 50 transmitters with randomly assigned identity numbers. Learn and delete individual transmitters directly from LCD display.
Ball bearing motor with built-in thermal protection and ball bearings isolates motor for quiet operation, provides overload protection and extended motor life due to use of bearings over bushings.
Open/close/stop and setup keys included on control board. Keeps all controls near the LCD display convenient for set up.
Electric box isolation from the frame reduces vibration.

Standard Features

UL 325 2010 approved.
EZ Limit® electro-mechanical limits.
Max run timer automatically adjusts to up and down run time.
TensiBelt® self-tensioning primary drive reduction.
Delay on reverse.
16-character LCD display.
3-button control station.
2-year/20,000 cycle warranty.
Programmable mid-stop.
Right or left hand emergency hoist models available for manual operation.
Built-in cycle count and trouble-shooting assistance via LCD display.

What's inside

02103

3-Button Station

CPS-U

Commercial Photo Eyes
